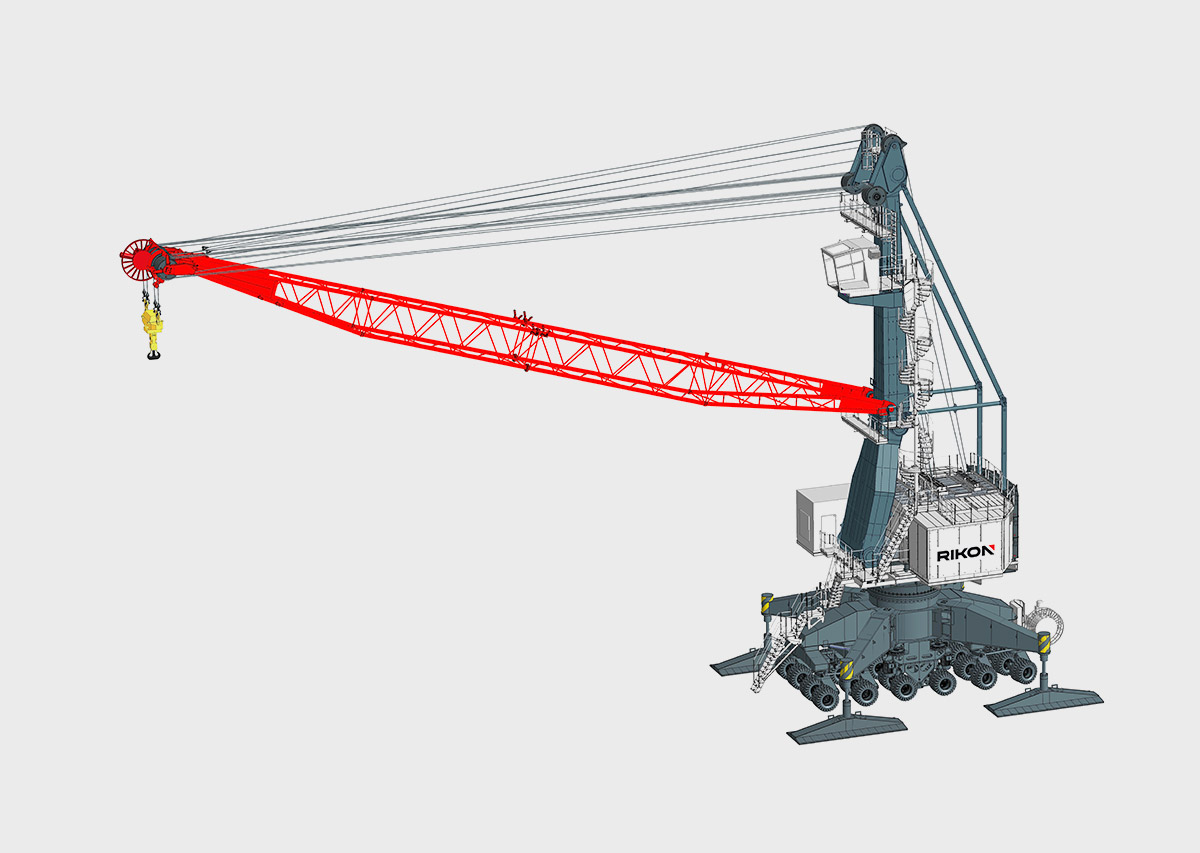

RIKON’s Mobile Harbour cranes are engineered for efficiency and reliability, making them perfect for handling diverse cargo in busy port environments. With a lifting capacity of up to 200 tons, a maximum outreach of 60 meters, and a lifting height of up to 55 meters, these cranes can effectively manage heavy loads and large containers. They are designed to operate in various configurations, offering flexibility for different loading and unloading scenarios.
Equipped with advanced technology and electric- driven movements, RIKON’s Mobile Harbour cranes enhance safety and productivity without the use of hydraulic components. Featuring intuitive controls and ergonomic designs for operator comfort, these cranes are built to withstand demanding port conditions, ensuring long‑lasting performance.
Other cranes and equipment:
TECHNICAL SPECIFICATIONS
Boom reach 1
Minimum
11 m
Maximum
48 m
Load lifting capacity2
Grab mode
at boom reach 10-29 m
75 t
at boom reach 20-48 m
42,9-24,5 t
Container mode (single lift)
at boom reach 11‑34 m
41 t
at boom reach 35-48 m
40,5-22 t
Container mode (twin lift)
at boom reach 11-28 m
50t
at boom reach 30‑48 m
49,9‑20,3t
Hook mode
at boom reach 10,5-12 m
124 t
at boom reach 13‑48 m
117,6‑27,3 t
Crane wheelbase
Longitudinal
12,5 m
Transverse
12,5 m
Lifting heights
Above quay at minimum radius
45 m
Above quay at maximum radius
29 m
Below quay level
aprox. 12 m
Operating speeds
Lifting/lowering
0‑120 m/min
Slewing
max. 1,6 rpm
Luffing (average horizontal speed)
60 m/min
Traveling
max. 5 km/h
Crane weight
approx. 342 t
Operation mode according to ISO 4301/1
A7
1 Possibility of boom reach extension up to 54 m 2 Possibility of increasing load lifting capacity up to 154 t
